10 Gigabit PCI Express Network Adapter SPEC: PCIe 3.0 ×4, Include CAT6A Ethernet Cable FATURE: Support 10/5/2.5/1 Gbps

TX401

10 Gigabit PCI Express Network Adapter

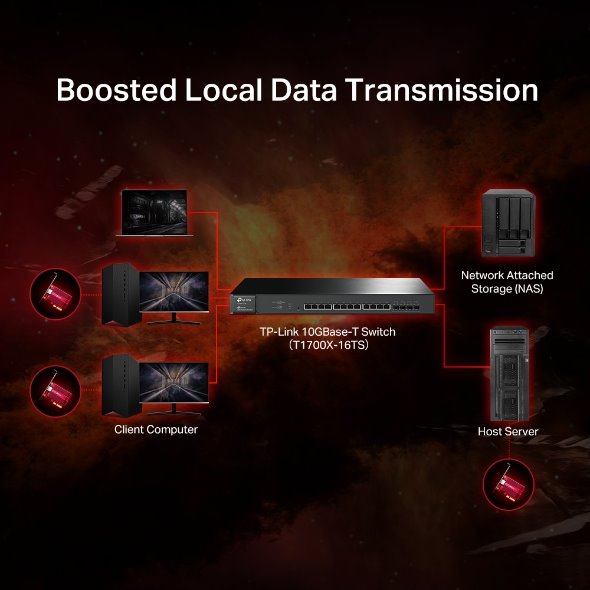

10 Gbps Networking - Combined with the latest 10GBase-T Technology, TX401 delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions.†

Versatile Compatibility - With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.

CAT6A Ethernet Cable - To maximize TX401"s performance, a 1.5 m CAT6A Ethernet Cable is included—rated for up to 10 Gbps while a regular cable is only rated for 1 Gbps.

Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.

Comprehensive System Support - Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, and Linux to meet your diverse operating system needs.‡



HARDWARE FEATURES

Interface 1× PCI Express 3.0 x4, 1× RJ45 Gigabit/Megabit Port

Network Media 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX

LED 10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act

Wireless Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an,

IEEE802.3az, IEEE 802.3x

Data Rates 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps for Half-Duplex mode,

200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps for Full-Duplex mode

Dimensions 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)

Flow Control 802.3x

OTHERS

Certification FCC, CE, RoHS

Package Contents 10 Gigabit PCIe Network Adapter (TX401)

Standard/Low-Profile Brackets

Quick Installation Guide

Resource CD

1.5 m CAT6A Ethernet Cable

System Requirements Windows 10/8.1/8/7, Windows Servers 2019/2016/

2012 R2, Linux

Environment Operating Temperature: 0?~40? (32? ~104?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
