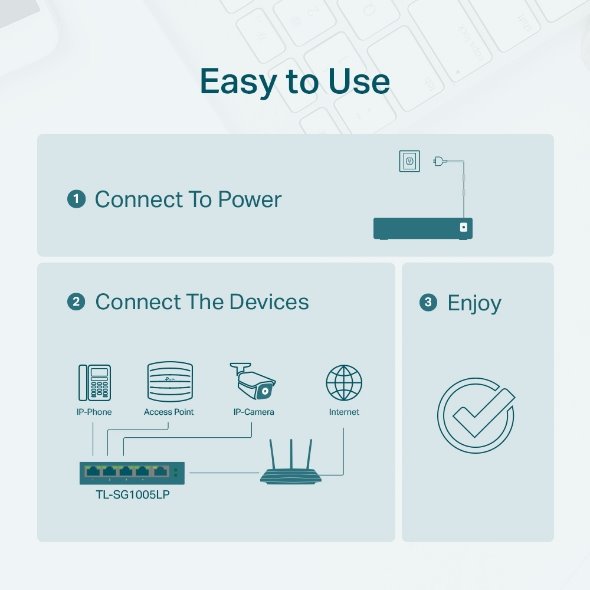

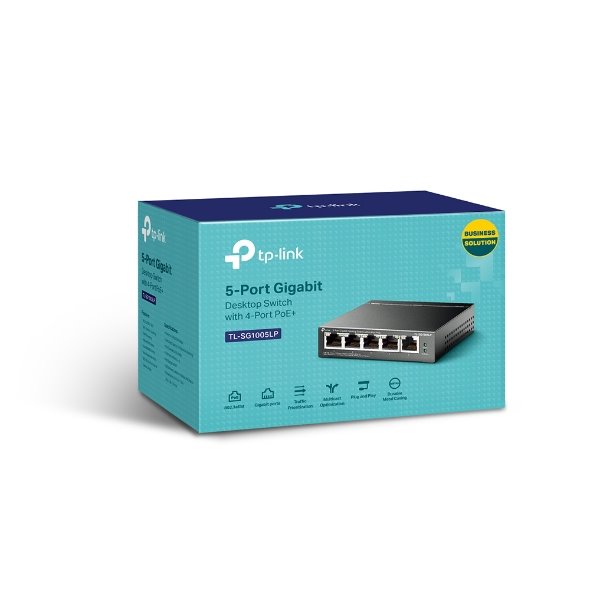

5-Port Gigabit Desktop Switch with 4-Port PoE+ PORT: 4× Gigabit PoE+ Ports, 1× Gigabit Non-PoE Port SPEC: 802.3af/at,
| Kód tovaru: | 957791 |
|---|---|
| Výrobca: | TP-link |
| PN kód: | TL-SG1005LP |
| EAN kód: | 6935364052720 |
| Záruka: | 36 mesiacov |
| Dostupnosť: | skladom (5) |
HARDWARE FEATURES
Interface • 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 40 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption • 4.12 W (220/50 Hz. no PD connected)
• 47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation • 14.05 BTU/h (no PD connected)
• 161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SG1005LP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Príslušenstvo
TP-Link D-TPDIN100 Držák na DIN lištu pro OC200, OC220, SF1005xx, SG105xx, SG1005xx, šedý
Druh:Konzoly, stojany
skladom (1)
Parametre
| Hĺbka jedn. balenie | 13.5 |
| Hmotnosť jedn. balenie | 0.746 |
| Počet kusov jedn. balenie | 1 |
| Rozmer xyz jedn. balenie | 12.2x20.1x13.5 |
| Šírka jedn. balenie | 12.2 |
| Typ balenia jedn. balenie | Balitelné |
| Výška jedn. balenie | 20.1 |
| Hmotnosť kartónu | 9.712 |
| Typ obalu kartón | Expedovatelné |
| Počet kusov v kartóne | 12 |
| Rozmer xyz kartónu | 29.4x42x40.2 |
| Typ balenia kartónu | Balitelné |
| Počet LAN portov | 5 |
| Prevedenie switcha | Desktop |
| Fanless switch | Ano |
| Obsahuje switch | Ano |
| Rýchlosť LAN max. | 1 Gbps |
| Optika | Ne |
| PoE | Out (výstup) |
| PoE In standart | Nepodporuje |
| PoE Out standard | 802.3at (max. 33,6W) - PoE+ |
| PoE power budget (W) | Do 100 |
| Management | Unmanaged switch |
