5-Port Gigabit Easy Smart Switch with 4-Port PoE+ PORT: 4× Gigabit PoE+ Ports, 1× Gigabit Non-PoE Ports SPEC: 802.3at/
| Kód tovaru: | 958640 |
|---|---|
| Výrobca: | TP-link |
| PN kód: | TL-SG105PE |
| EAN kód: | 6935364052744 |
| Záruka: | 36 mesiacov |
| Dostupnosť: | skladom (23) |
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A)
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Max Power Consumption 4.52 W (220V/50Hz with no PD connected)
75.16 W (220V/50Hz with 65 W PD connected)
Max Heat Dissipation 15.41 BTU/h (with no PD connected)
256.30 BTU/h (with 65 W PD connected)
PERFORMANCE
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.44 Mpps
MAC Address Table 2 K
Packet Buffer Memory 1.5 Mb
Jumbo Frame 16 KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

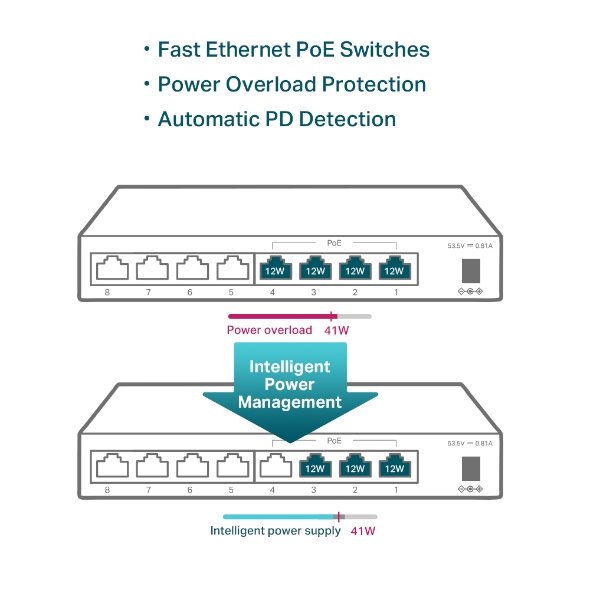

PoE Auto Recovery

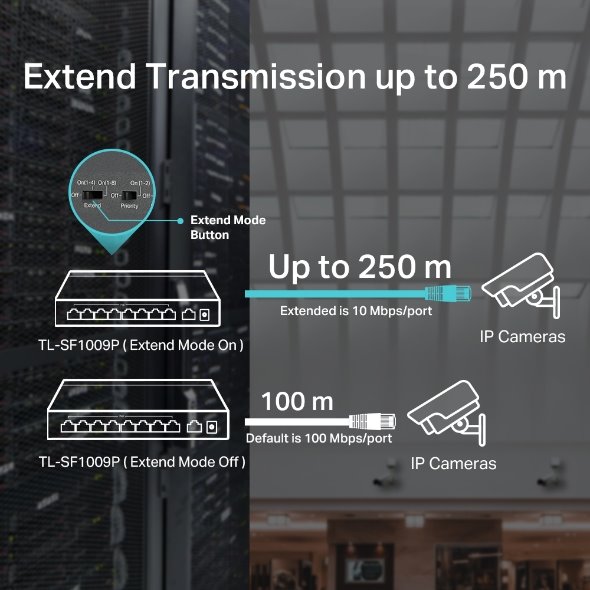

Extend Mode
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS

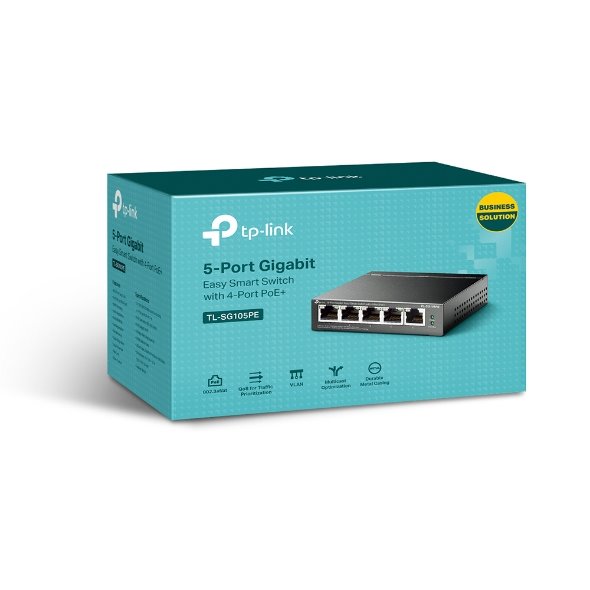

Package Contents TL-SG105PE
Power Adapter
Installation Guide
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
Príslušenstvo
TP-Link D-TPDIN100 Držák na DIN lištu pro OC200, OC220, SF1005xx, SG105xx, SG1005xx, šedý
Druh:Konzoly, stojany
skladom (9)
Parametre
| Počet kusů jedn. balení | 1 |
| Hmotnost jedn. balení | 0.788 |
| Rozměr xyz kartonu | 26x40x40 |
| Výška jedn. balení | 12.4 |
| Hmotnost kartonu | 10.400 |
| Typ balení kartonu | Balitelné |
| Šířka jedn. balení | 19.7 |
| Rozměr xyz jedn. balení | 19.7x12.4x13.6 |
| Typ balení jedn. balení | Balitelné |
| Počet kusů v kartonu | 12 |
| Typ obalu kartón | Expedovatelné |
| Hloubka jedn. balení | 13.6 |
| Provedení switche | Desktop |
| Rychlost LAN max. | 1 Gbps |
| Počet LAN portů | 5 |
| Obsahuje switch | Ano |
| POE | Ano |
| Fanless switch | Ano |
| Management | Smart switch |
| Počet LAN portů | 5 |
| POE standard | 802.3at (max. 33,6W) - PoE+ |
| PoE | Out (výstup) |
| PoE In standard | Nepodporuje |
| PoE Out standard | 802.3at (max. 33,6W) - PoE+ |
| PoE power budget (W) | Do 100 |
