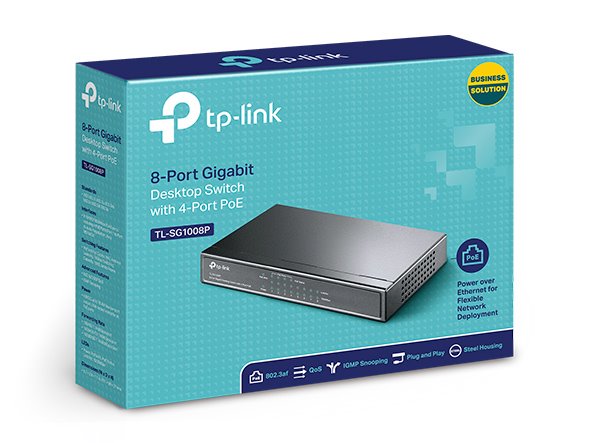

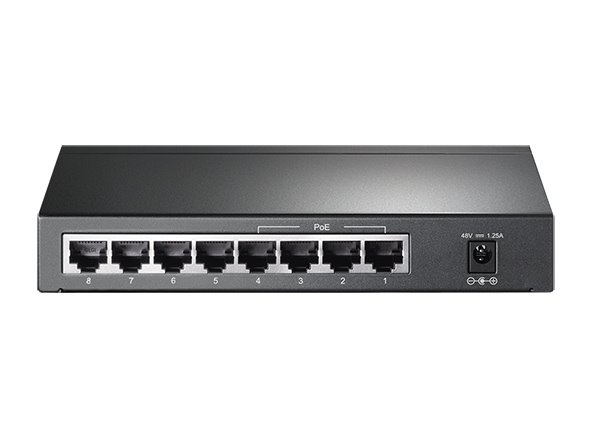

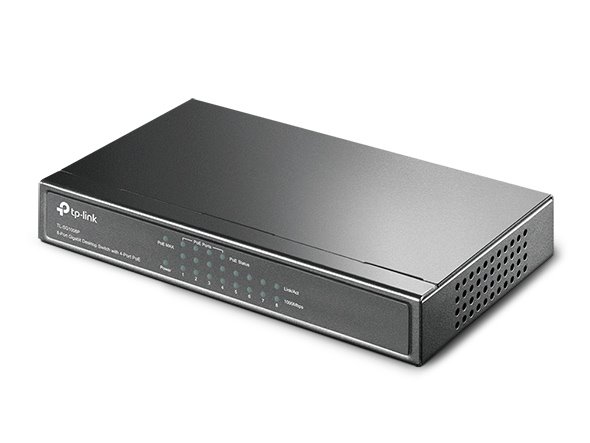

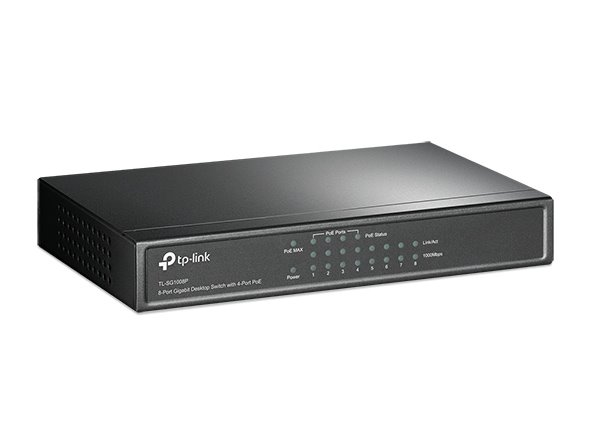

8-Port Gigabit Desktop Switch with 4-Port PoE+ PORT: 4× Gigabit PoE+ Ports, 4× Gigabit Non-PoE Ports SPEC: 802.3af/at,

8portový gigabitový stolní switch s 4 porty PoE
TL-SG1008P
8 portů 10/100/1 000 Mbit/s RJ45
Se čtveřicí portů PoE probíhá přenos dat a napájení v jednom kabelu.
Spolupracuje se zařízeními standardu IEEE 802.3af a rozšiřuje domácí nebo firemní síť.
Nevyžaduje žádnou instalaci ani konfiguraci.
802.1p/DSCP QoS umožňuje plynulou komunikaci
Podporuje PoE power až 15.4W pro každý PoE port
Podporuje PoE power až 55W pro všechny PoE porty

HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Power Consumption 65.2W (max. with 55w PoE device connected)
5.5W (max. no PoE device connected)
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 55W
Backbound Bandwidth 16Gbps
Mac Address Table 4K
Dimensions ( W x D x H ) 6.7*3.9*1.1 in. (171*98*27 mm)
Max Power Consumption 5.49W(220/50Hz. no PD connected)
65.24W(220/50Hz. with 55W PD connected)
Max Heat Dissipation 18.73BTU/h(no PD connected)
222.60BTU/h(with 55W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG1008P, Power Adapter, Installation Guide
Consumption 65.2W (max. with 55w PoE device connected)
5.5W (max. no PoE device connected)
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
