ASUS RT-AX52U AX1800 Dual Band WiFi 6 (802.11ax) AiMesh Extendable Router

ASUS RT-AX52 (AX1800) Dual Band WiFi 6 Extendable Router, Instant Guard, Parental Control Scheduling, Built-in VPN, AiMesh Compatible

New-Gen WiFi Standard – Supporting 802.11ax WiFi standard for better efficiency and throughput.
Ultra-fast WiFi Speed – RT-AX52 supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.
Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicating with multiple devices simultaneously
Easy Extendable Network – Enjoy seamless roaming with rich, advanced features by adding any AiMesh-compatible router.

RT-AX52
Network Standard

IPv6
IPv4
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
Product Segment

AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
WiFi Data Rate

WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
802.11g : up to 54 Mbps
802.11b : up to 11 Mbps
802.11a : up to 54 Mbps
Antenna

External antenna x 4
Transmit / Receive

5GHz 2x2
2.4GHz 2x2
Processor

1.3GHz dual-core processor
Memory

128 MB Flash
256 MB RAM
Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
Operating Frequency

2.4GHz / 5GHz
Operating Mode

Access Point, AiMesh Node, Repeater, Router

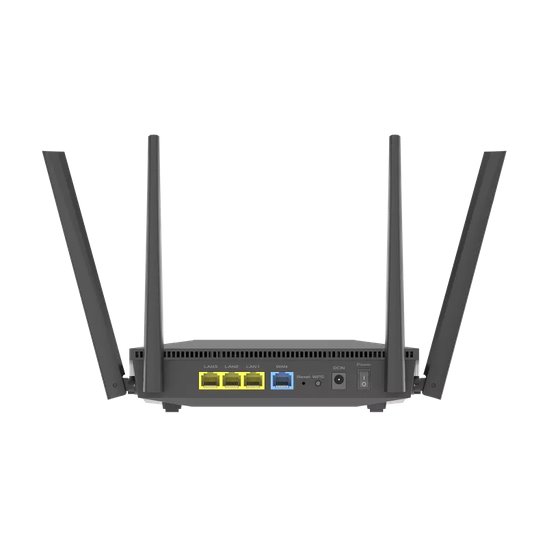

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
Buttons

WPS Button, Reset Button, Power Switch
LED Indicator

Power x 1
WAN x 1
LAN x 3
2.4G x 1
5G x 1
WPS x 1
Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1 A current
Package Content

.RT-AX52
.RJ45 Ethernet Cable
.Power Adapter
.Quick Start Guide
.Warranty Card
Product Weight (g)

298g
Product Dimensions

192 x 126.3 x 47.5 mm (WxDxH)
AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node
Parental Control

Customized Internet Schedule
Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."
Security

Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, SSH, Firewall
VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP
Traffic Control

• Bandwidth Limiter, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor
WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, Port triggering, DMZ, DDNS
LAN

DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Wake on LAN (WOL)
Wireless

UTF-8 SSID, WiFi MAC Address Filter, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming
Administration

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log
