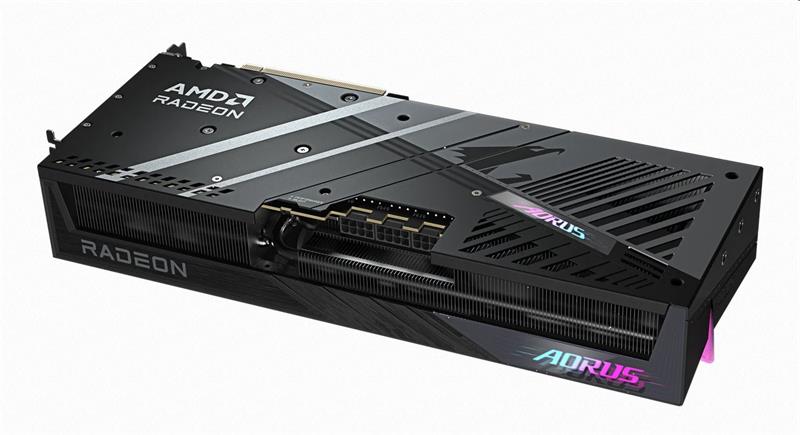

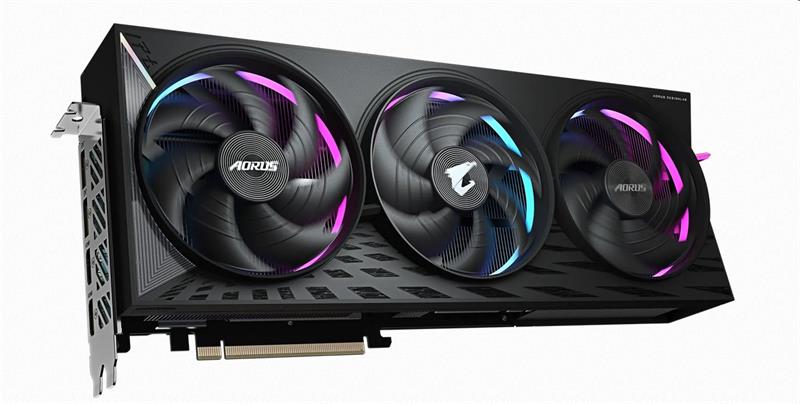

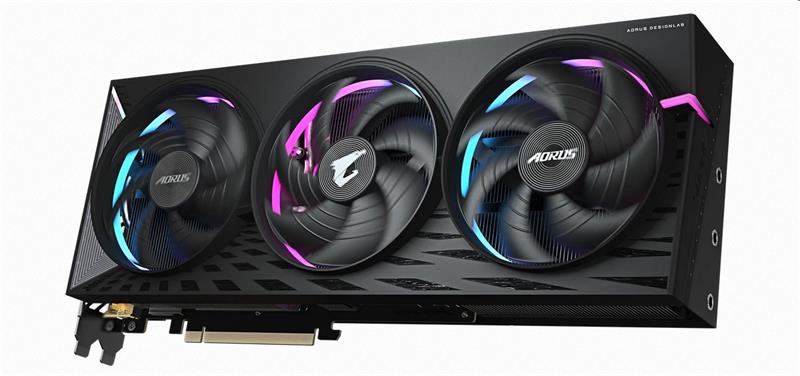

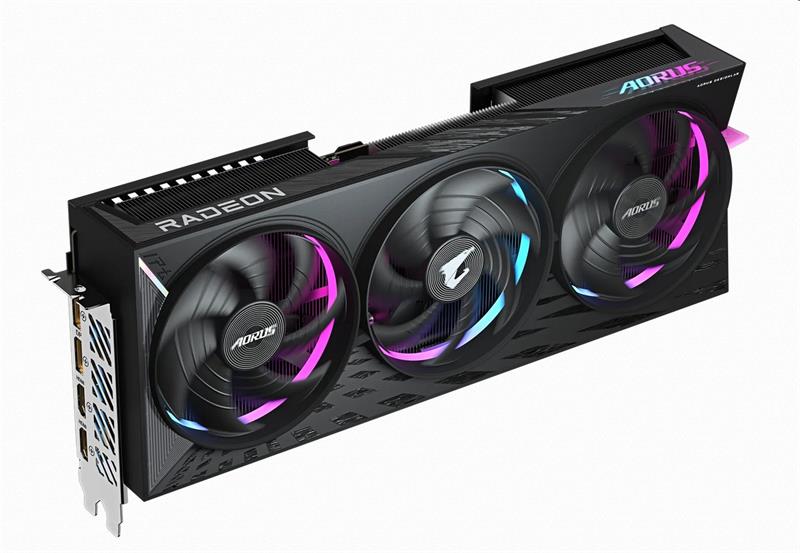

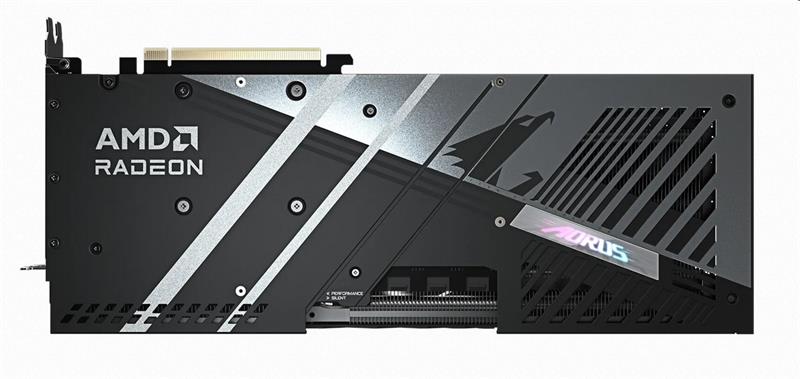

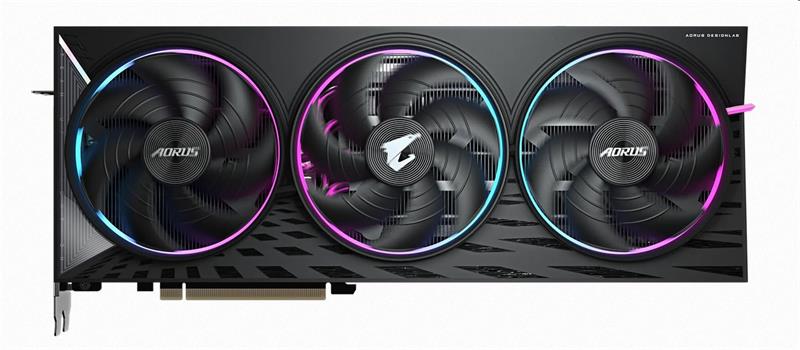

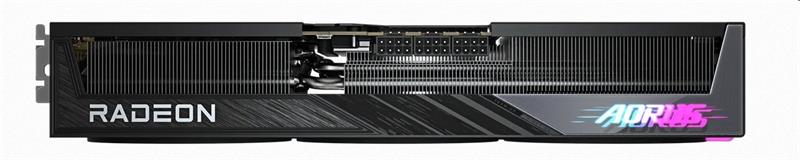

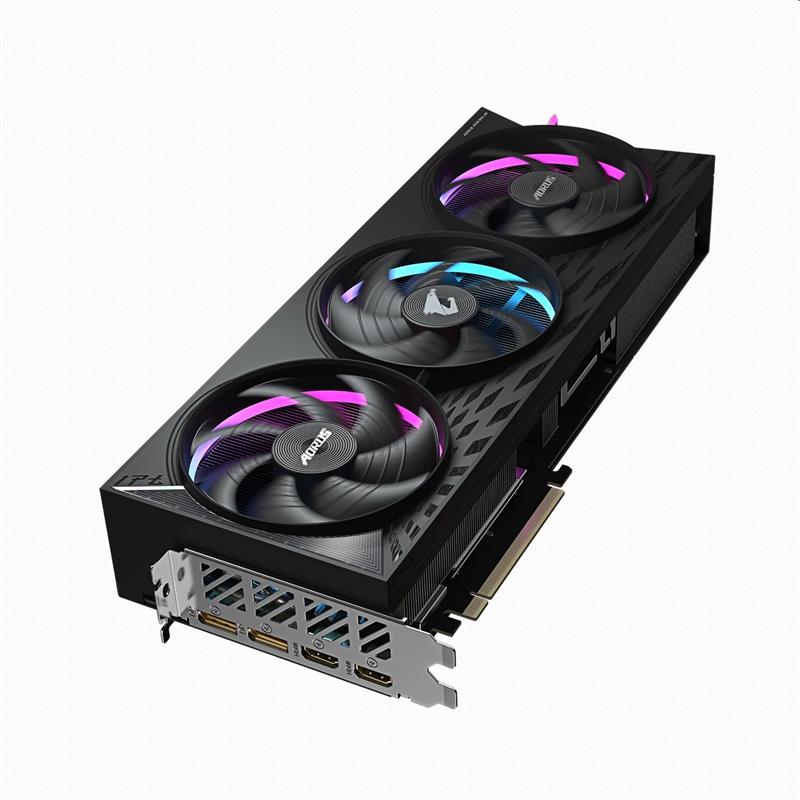

Gigabyte AORUS Radeon RX 9070 XT ELITE OC 16G

FEATURES

Powered by Radeon™ RX 9070 XT
Integrated with 16GB GDDR6 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Halo
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder
4 years warranty (Online registration required)

CORE CLOCK

TBD




Graphics Processing
Radeon™ RX 9070 XT
Core Clock
TBD
Stream Processors
4096
Memory Clock
20 Gbps
Memory Size
16GB
Memory Type
GDDR6
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=339 W=136 H=59 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
850W
Power Connectors
8 pin*3

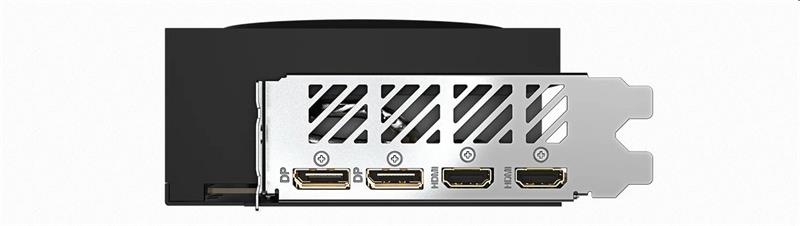

Output
DisplayPort 2.1a *2
HDMI 2.1b *2
Accessories
1. Quick guide
2. Warranty registration
3. AORUS metal sticker
4. Versatile VGA holder
5. Versatile VGA holder manual
Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
