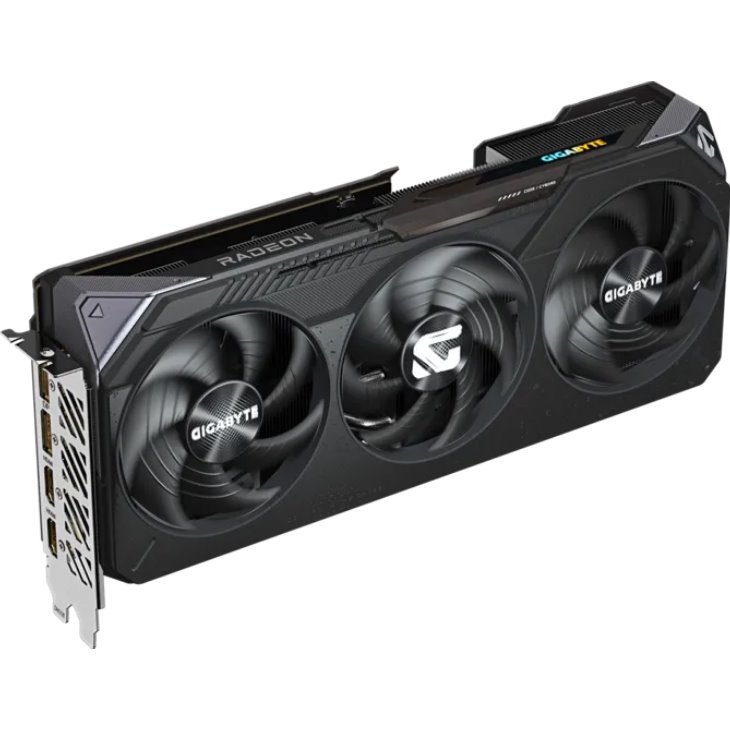

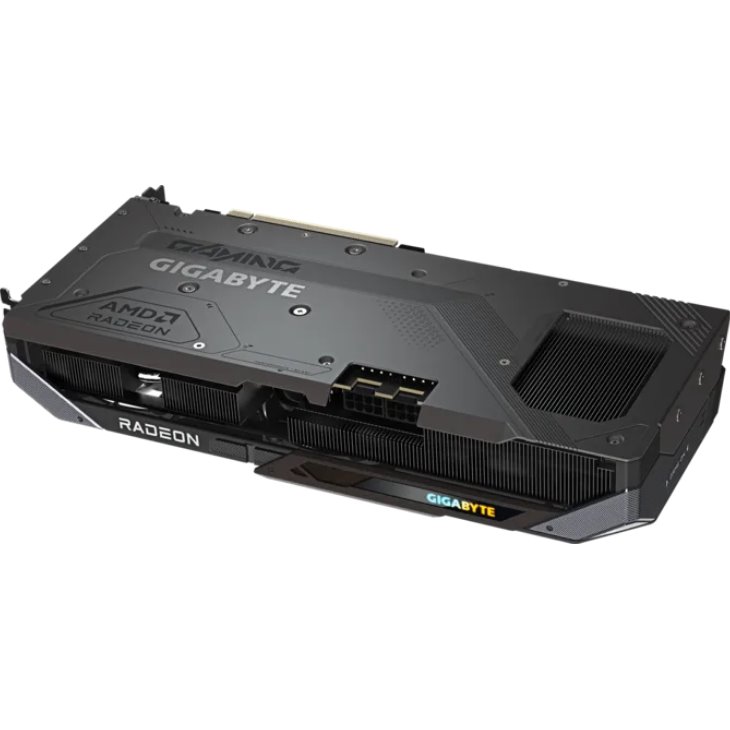

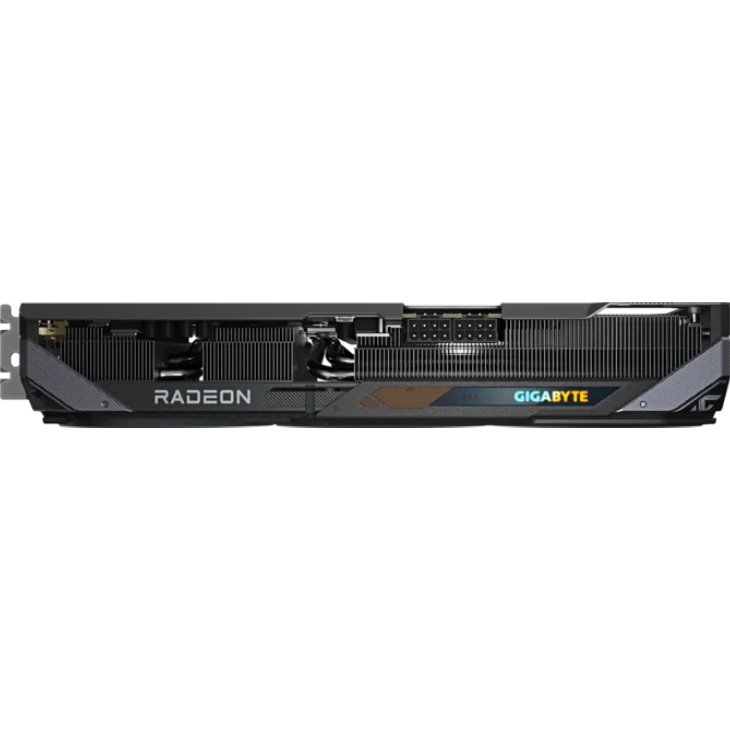

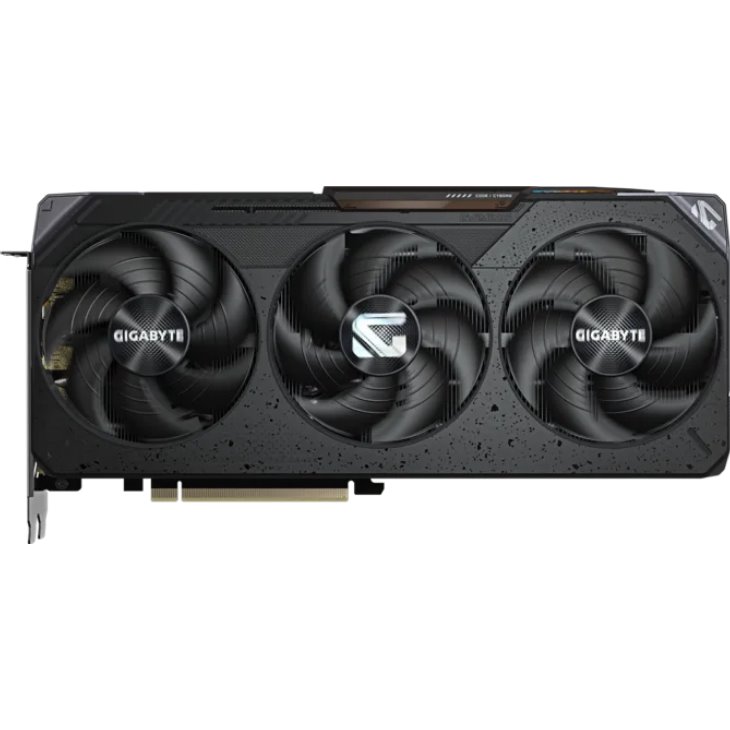

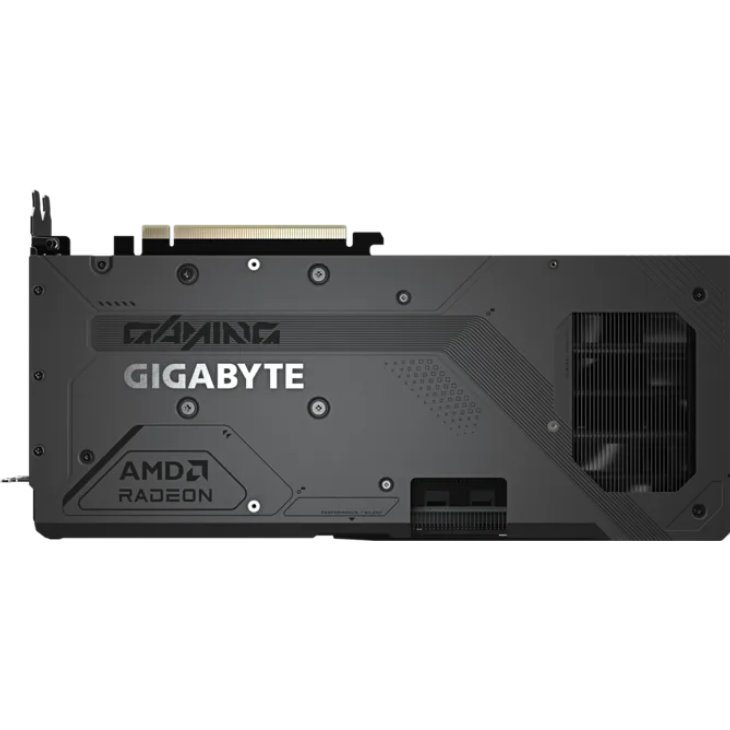

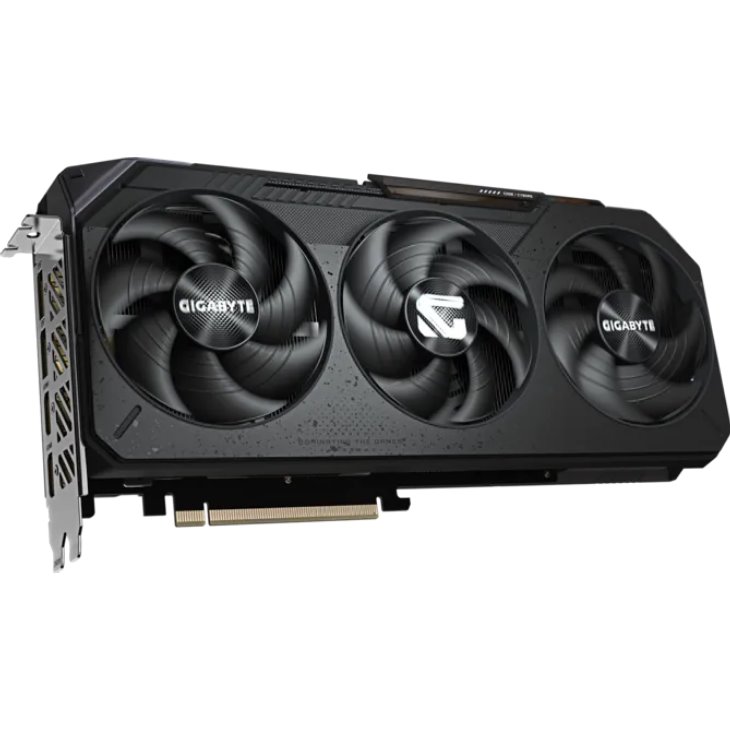

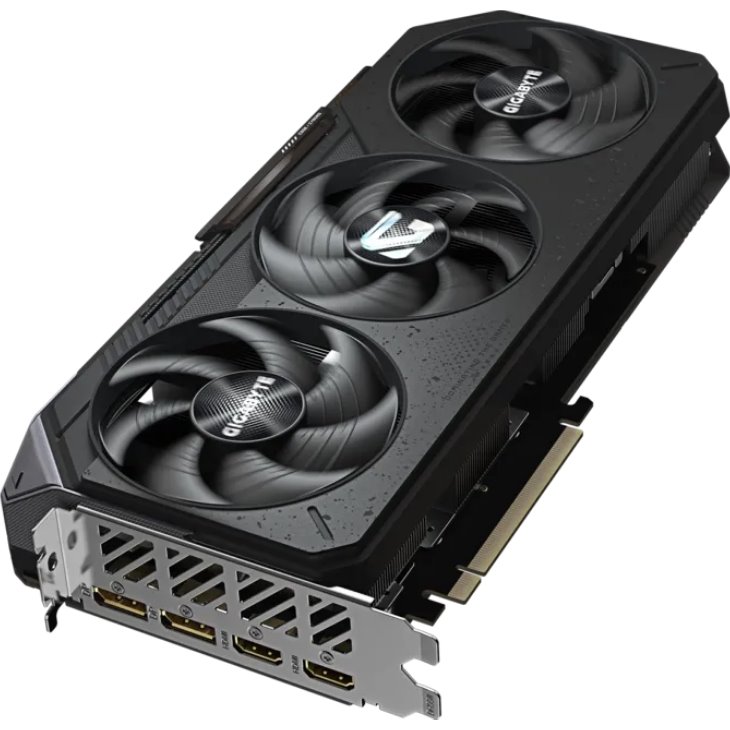

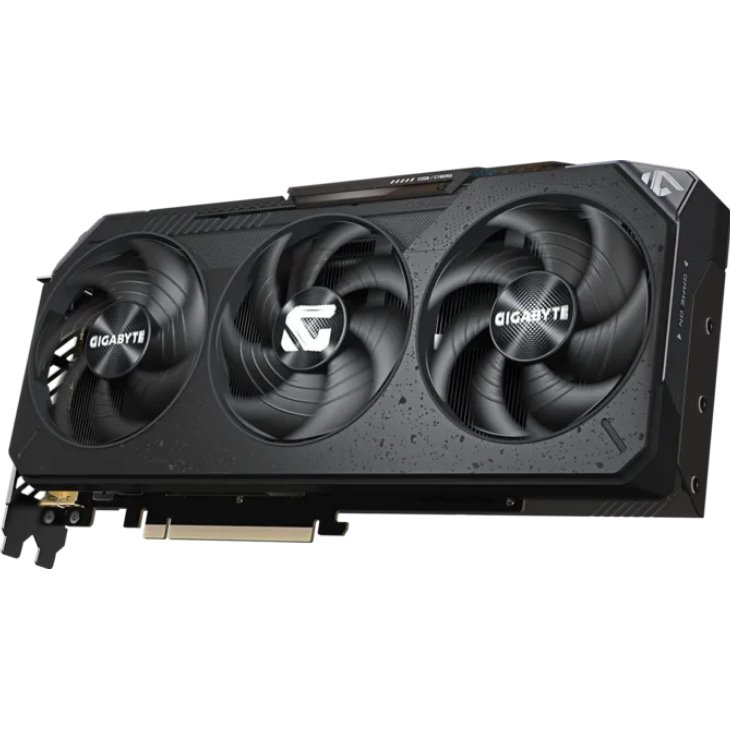

Gigabyte Radeon RX 9070 GRE GAMING OC 12G

FEATURES

Powered by Radeon™ RX 9070 GRE
Integrated with 12GB GDDR6 192bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure

CORE CLOCK

Boost Clock* : up to 2920 MHz
Game Clock* : up to 2340 MHz

Graphics Processing
Radeon™ RX 9070 GRE

Core Clock
Boost Clock* : up to 2920 MHz
Game Clock* : up to 2340 MHz

Stream Processors
3072

Memory Clock
18 Gbps

Memory Size
12GB

Memory Type
GDDR6

Memory Bus
192 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680 x 4320

Multi-view
4

Card size
L=288 W=132 H=50 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
750W

Power Connectors
8 pin*2

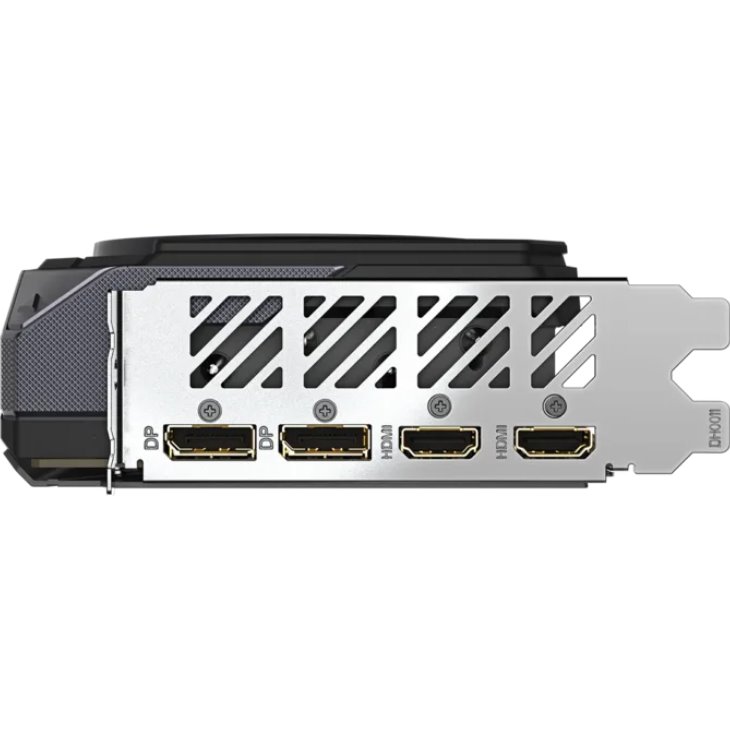

Output
DisplayPort 2.1a x2
HDMI 2.1b x2

Accessories
Quick guide

Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
