ZyXEL Security Router - USG LITE 60, 4*GbE LAN, 1*2.5 GbE Lan, 2.5GbE WAN, Wifi 6 Mesh

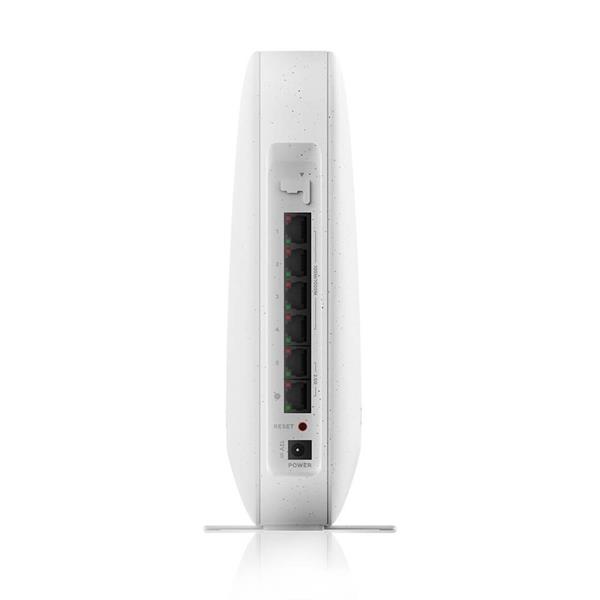

Zyxel Security Router USG Lite 60 predstavuje jednoduché riešenie pre pokročilé zabezpečenie vašej siete naprieč rôznymi kategóriami. V jeho kompaktnom a štýlovom tele sa ukrýva komplexné zabezpečenie spoločne s moderným Wi-Fi 6 2,4 GHz a 5 GHz pre spoľahlivé pokrytie domácnosti Wi-Fi signálom. Zariadenie ponúka maximálnu rýchlosť Wi-Fi až 6 Bb/s (až 1 150 Mb/s 2,4 GHz a až 4 800 Mb/s 5 GHz) a maximálnu rýchlosť cez ethernetový RJ45 port až 2,5 Gb/s . Na prednej strane sa nachádzajú stavové LED diódy informujúce o funkčnosti routera, zadná strana potom obsahuje štvoricu portov.



Hardware Specifications

CPU



Quad-core, 2.00GHz



RAM/FLASH



1GB/512MB



Ethernet ports



WAN: 1 x 100/1000/2500 Mbps



LAN: 1 x 100/1000/2500 Mbps



4 x 100/1000 Mbps



System Capacity & Performance

SPI firewall throughput LAN to WAN (Mbps)



2,000



Bridge mode throughput (Mbps)



2,000



DPI throughput Application on (routing mode) (Mbps)



2,000



Throughput with threat management on (Mbps)



2,000



VPN throughput TCP single session (Mbps)



100



VPN throughput UDP 1424 (Mbps)



300



Max. TCP concurrent sessions



20,000



Max. gateway-to-gateway IPsec VPN tunnels



3



Max. concurrent IPSec VPN tunnels



5



Max. remote VPN tunnels



5



Wireless Specifications

Standard



IEEE802.11 ax/ac/n/g/b/a



MIMO



MU-MIMO



Wireless speed



2.4 GHz: 1148 Mbps



5 GHz: 4804 Mbps



Frequency band



2.4 GHz:



USA (FCC): 2.412 to 2.462 GHz



Europe (ETSI): 2.412 to 2.472 GHz





5 GHz:



USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz



European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz



Bandwidth



20-, 40- ,80-, and, 160-MHz



Conducted typical transmit output power*1



US (2.4GHz/5GHz):



29.98/29.82 dBm



EU (2.4GHz/5GHz):



19.92/29.90 dBm



Wireless security



Open, WPA2-PSK



SSID number



8



MESH Networking



Yes*1



Antenna type



4 (internal)



Antenna gain



2.4Ghz 2.0dBi 4x4: 4SS



5Ghz 3.0dBi 4x4: 4SS



Security Features

Ransomware / malware prevention



Yes



Intrusion blocker



Yes



Dark Web Blocker



Yes



Stop mail fraud & phishing



Yes



Block Ads



Yes



Block VPN proxy



Yes



Firewall



Yes



Country Restriction (GeoIP)



Yes



Exception list



Yes



Custom allowed / blocked domain



Yes



Traffic Management (applications & clients)



Yes



Security event analytics



Nebula Threat Report



Real-time threat intelligence*2



Yes



Web Filtering (Content Filter)*2



Yes



VPN Features

Site2site VPN



IPSec



Remote access VPN



Yes



Networking Features

WAN Type



DHCP/Static IP/PPPoE



Reserve IP (IP/MAC binding)



Yes



Block clients



Yes



Virtual Server (NAT)



Yes



DHCP server and DHCP relay



Yes



Dynamic DNS



Yes



Static route



Yes



Guest Network



Yes



VLAN



4



Management

Onboarding WAN setting method



Yes



Site-wide SSID management



Yes



Multi-site management



Yes



Diagnostics



Yes



Remote support



Yes



Configuration backup and restore



Yes



Live tools



Yes



Nebula Pro Pack - Advance feature set*2



Yes



Power Requirements

Power input



12 V DC, 3.0 A



Max. power consumption (Watt Max.)



31W



Physical Specifications

Item



Dimensions (WxDxH)(mm/in.)

161.7 x 65 x 229 mm (6.37” x 2.56” x 9.02”)



Weight (g/lb.)

707/1.56



Environmental Specifications

Operating



Temperature

0°C to 40°C (32°F to 104°F)



Humidity

5% to 95% (Non-condensing)



Storage



Temperature

-30°C to 70°C (-22°F to 158°F)



Humidity

5% to 95% (Non-condensing)



Certifications

CE



Yes



FCC



Yes
